03089 inchIndexing plungers short version, inch |
go back |
|
|
DescriptionMaterial:Steel version
Indexing pin hardened:
grade 5.8
Stainless steel version
Indexing pin not hardened:
Threaded sleeve 1.4305.
Indexing pin 1.4305.
Mushroom knob black-grey thermoplastic. Version:Steel version:
Indexing pin hardened, ground, black oxidised.
Stainless steel version:
Indexing pin not hardened, ground, bright.Note:Indexing plungers are used to prevent any change in position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged. Form C or D is recommended for applications in which the pin is disengaged over extended periods and should be prevented from springing back.On request:Special versions.Accessory:Spacer rings 03089.
fastening sets for thin-walled parts 03094-10. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

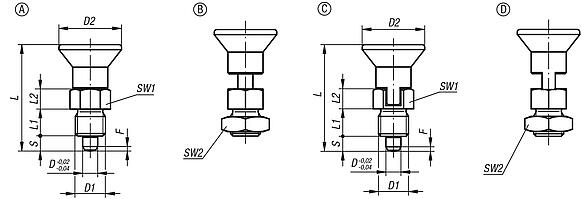

Drawings (total overview) |
| Order No. | Form | Main
material | Surface finish
body | Component
colour | D | D1 | D2 | L | L1 | L2 | Travel
S | SW1 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| 03089-5004AK | A | steel | hardened | black grey RAL 7021 | 4 | 5/16-24 | 18 | 29,5 | 6 | 6 | 4 | 10 | 1 | 6 | 12 |  | | 8.90 € | | | 03089-5105AL | A | steel | hardened | black grey RAL 7021 | 5 | 3/8-24 | 21 | 34,5 | 8 | 7 | 5 | 13 | 1,3 | 5 | 12 | | | 8.49 € | | | 03089-5206A5 | A | steel | hardened | black grey RAL 7021 | 6 | 1/2-13 | 25 | 41,7 | 10 | 8 | 6 | 14 | 1,8 | 6 | 14 | | | 9.41 € | | | 03089-5308A6 | A | steel | hardened | black grey RAL 7021 | 8 | 5/8-11 | 33 | 54 | 12 | 10 | 8 | 19 | 2,3 | 14 | 28 | | | 11.85 € | | | 03089-5410A7 | A | steel | hardened | black grey RAL 7021 | 10 | 3/4-10 | 33 | 61 | 15 | 12 | 10 | 22 | 2,8 | 15 | 32 | | | 17.85 € | | | 03089-15004AK | A | stainless steel | not hardened | black grey RAL 7021 | 4 | 5/16-24 | 18 | 29,5 | 6 | 6 | 4 | 10 | 1 | 6 | 12 | | | 14.51 € | | | 03089-15105AL | A | stainless steel | not hardened | black grey RAL 7021 | 5 | 3/8-24 | 21 | 34,5 | 8 | 7 | 5 | 13 | 1,3 | 5 | 12 | | | 13.81 € | | | 03089-15206A5 | A | stainless steel | not hardened | black grey RAL 7021 | 6 | 1/2-13 | 25 | 41,7 | 10 | 8 | 6 | 14 | 1,8 | 6 | 14 | | | 16.48 € | | | 03089-15308A6 | A | stainless steel | not hardened | black grey RAL 7021 | 8 | 5/8-11 | 33 | 54 | 12 | 10 | 8 | 19 | 2,3 | 14 | 28 | | | 21.13 € | | | 03089-15410A7 | A | stainless steel | not hardened | black grey RAL 7021 | 10 | 3/4-10 | 33 | 61 | 15 | 12 | 10 | 22 | 2,8 | 15 | 32 | | | 36.72 € | |
|
| Order No. | Form | Main
material | Surface finish
body | Component
colour | D | D1 | D2 | L | L1 | L2 | Travel
S | SW1 | SW2 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| 03089-6004AK | B | steel | hardened | black grey RAL 7021 | 4 | 5/16-24 | 18 | 29,5 | 6 | 6 | 4 | 10 | 1/2 | 1 | 6 | 12 | | | 9.11 € | | | 03089-6105AL | B | steel | hardened | black grey RAL 7021 | 5 | 3/8-24 | 21 | 34,5 | 8 | 7 | 5 | 13 | 9/16 | 1,3 | 5 | 12 | | | 8.69 € | | | 03089-6206A5 | B | steel | hardened | black grey RAL 7021 | 6 | 1/2-13 | 25 | 41,7 | 10 | 8 | 6 | 14 | 3/4 | 1,8 | 6 | 14 | | | 9.59 € | | | 03089-6308A6 | B | steel | hardened | black grey RAL 7021 | 8 | 5/8-11 | 33 | 54 | 12 | 10 | 8 | 19 | 15/16 | 2,3 | 14 | 28 | | | 12.03 € | | | 03089-6410A7 | B | steel | hardened | black grey RAL 7021 | 10 | 3/4-10 | 33 | 61 | 15 | 12 | 10 | 22 | 1-1/8 | 2,8 | 15 | 32 | | | 18.07 € | | | 03089-16004AK | B | stainless steel | not hardened | black grey RAL 7021 | 4 | 5/16-24 | 18 | 29,5 | 6 | 6 | 4 | 10 | 1/2 | 1 | 6 | 12 | | | 15.46 € | | | 03089-16105AL | B | stainless steel | not hardened | black grey RAL 7021 | 5 | 3/8-24 | 21 | 34,5 | 8 | 7 | 5 | 13 | 9/16 | 1,3 | 5 | 12 | | | 14.73 € | | | 03089-16206A5 | B | stainless steel | not hardened | black grey RAL 7021 | 6 | 1/2-13 | 25 | 41,7 | 10 | 8 | 6 | 14 | 3/4 | 1,8 | 6 | 14 | | | 17.42 € | | | 03089-16308A6 | B | stainless steel | not hardened | black grey RAL 7021 | 8 | 5/8-11 | 33 | 54 | 12 | 10 | 8 | 19 | 15/16 | 2,3 | 14 | 28 | | | 22.89 € | | | 03089-16410A7 | B | stainless steel | not hardened | black grey RAL 7021 | 10 | 3/4-10 | 33 | 61 | 15 | 12 | 10 | 22 | 1-1/8 | 2,8 | 15 | 32 | | | 38.08 € | |
|
| Order No. | Form | Main
material | Surface finish
body | Component
colour | D | D1 | D2 | L | L1 | L2 | Travel
S | SW1 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| 03089-7004AK | C | steel | hardened | black grey RAL 7021 | 4 | 5/16-24 | 18 | 29,5 | 6 | 6 | 4 | 10 | 1 | 6 | 12 | | | 11.64 € | | | 03089-7105AL | C | steel | hardened | black grey RAL 7021 | 5 | 3/8-24 | 21 | 34,5 | 8 | 7 | 5 | 13 | 1,3 | 5 | 12 | | | 11.06 € | | | 03089-7206A5 | C | steel | hardened | black grey RAL 7021 | 6 | 1/2-13 | 25 | 41,7 | 10 | 8 | 6 | 14 | 1,8 | 6 | 14 | | | 11.92 € | | | 03089-7308A6 | C | steel | hardened | black grey RAL 7021 | 8 | 5/8-11 | 33 | 54 | 12 | 10 | 8 | 19 | 2,3 | 14 | 28 | | | 14.16 € | | | 03089-7410A7 | C | steel | hardened | black grey RAL 7021 | 10 | 3/4-10 | 33 | 61 | 15 | 12 | 10 | 22 | 2,8 | 15 | 32 | | | 23.07 € | | | 03089-17004AK | C | stainless steel | not hardened | black grey RAL 7021 | 4 | 5/16-24 | 18 | 29,5 | 6 | 6 | 4 | 10 | 1 | 6 | 12 | | | 16.98 € | | | 03089-17105AL | C | stainless steel | not hardened | black grey RAL 7021 | 5 | 3/8-24 | 21 | 34,5 | 8 | 7 | 5 | 13 | 1,3 | 5 | 12 | | | 16.19 € | | | 03089-17206A5 | C | stainless steel | not hardened | black grey RAL 7021 | 6 | 1/2-13 | 25 | 41,7 | 10 | 8 | 6 | 14 | 1,8 | 6 | 14 | | | 18.65 € | | | 03089-17308A6 | C | stainless steel | not hardened | black grey RAL 7021 | 8 | 5/8-11 | 33 | 54 | 12 | 10 | 8 | 19 | 2,3 | 14 | 28 | | | 25.13 € | | | 03089-17410A7 | C | stainless steel | not hardened | black grey RAL 7021 | 10 | 3/4-10 | 33 | 61 | 15 | 12 | 10 | 22 | 2,8 | 15 | 32 | | | 47.43 € | |
|
| Order No. | Form | Main
material | Surface finish
body | Component
colour | D | D1 | D2 | L | L1 | L2 | Travel
S | SW1 | SW2 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| 03089-8004AK | D | steel | hardened | black grey RAL 7021 | 4 | 5/16-24 | 18 | 29,5 | 6 | 6 | 4 | 10 | 1/2 | 1 | 6 | 12 | | | 11.76 € | | | 03089-8105AL | D | steel | hardened | black grey RAL 7021 | 5 | 3/8-24 | 21 | 34,5 | 8 | 7 | 5 | 13 | 9/16 | 1,3 | 5 | 12 | | | 11.20 € | | | 03089-8206A5 | D | steel | hardened | black grey RAL 7021 | 6 | 1/2-13 | 25 | 41,7 | 10 | 8 | 6 | 14 | 3/4 | 1,8 | 6 | 14 | | | 12.08 € | | | 03089-8308A6 | D | steel | hardened | black grey RAL 7021 | 8 | 5/8-11 | 33 | 54 | 12 | 10 | 8 | 19 | 15/16 | 2,3 | 14 | 28 | | | 14.41 € | | | 03089-8410A7 | D | steel | hardened | black grey RAL 7021 | 10 | 3/4-10 | 33 | 61 | 15 | 12 | 10 | 22 | 1-1/8 | 2,8 | 15 | 32 | | | 23.36 € | | | 03089-18004AK | D | stainless steel | not hardened | black grey RAL 7021 | 4 | 5/16-24 | 18 | 29,5 | 6 | 6 | 4 | 10 | 1/2 | 1 | 6 | 12 | | | 17.15 € | | | 03089-18105AL | D | stainless steel | not hardened | black grey RAL 7021 | 5 | 3/8-24 | 21 | 34,5 | 8 | 7 | 5 | 13 | 9/16 | 1,3 | 5 | 12 | | | 16.36 € | | | 03089-18206A5 | D | stainless steel | not hardened | black grey RAL 7021 | 6 | 1/2-13 | 25 | 41,7 | 10 | 8 | 6 | 14 | 3/4 | 1,8 | 6 | 14 | | | 19.23 € | | | 03089-18308A6 | D | stainless steel | not hardened | black grey RAL 7021 | 8 | 5/8-11 | 33 | 54 | 12 | 10 | 8 | 19 | 15/16 | 2,3 | 14 | 28 | | | 25.91 € | | | 03089-18410A7 | D | stainless steel | not hardened | black grey RAL 7021 | 10 | 3/4-10 | 33 | 61 | 15 | 12 | 10 | 22 | 1-1/8 | 2,8 | 15 | 32 | | | 48.40 € | |
|
