Ratchet levers with square socket

go back

Products
- Product overview
  - Flexible standard component system
    - Operating parts
      - Clamping and tension levers
        Ratchet levers
        Ratchet levers with square socket

Item description/product images

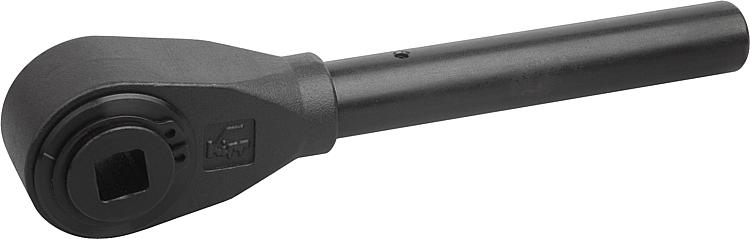

DescriptionMaterial:Housing carbon steel, tension nut and tension pin case-hardened steel.Version:Black oxidised.
Matt-finished or high-polish chrome-plated versions available at extra charge.Note:Tension Pin A standard version (for ratchet action):
Use for clamping and releasing in limited space and when considerable travel is involved. In order to change the tightening direction, the handle must be reversed by 180°.

Tension Pin B special version:
Use for clamping and releasing in limited space and when short travel is involved. The handle is not reversed in order to change the tightening direction. It must be pulled out before it can be engaged in the next slot.

Clamp with H7 reamed hole and DIN 6885/1 keyway.On request:Other thread, reamed hole and square socket sizes.
Dimension “A” available in other lengths at extra charge.
Special version: Tension pin B.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06470_IV Ratchet levers with square socket

153 kB

Drawings

Item selection/filter

Order No.	Kind of fastening	SW	Size	A=Handle length	A2	D	D1	D2	D3	D4	H	H1	H2	H3	No. of index slots	Price
06470-510	square socket	10	1	150	48	22	33	17	22	36	31	4,5	15,5	3	7	on request
