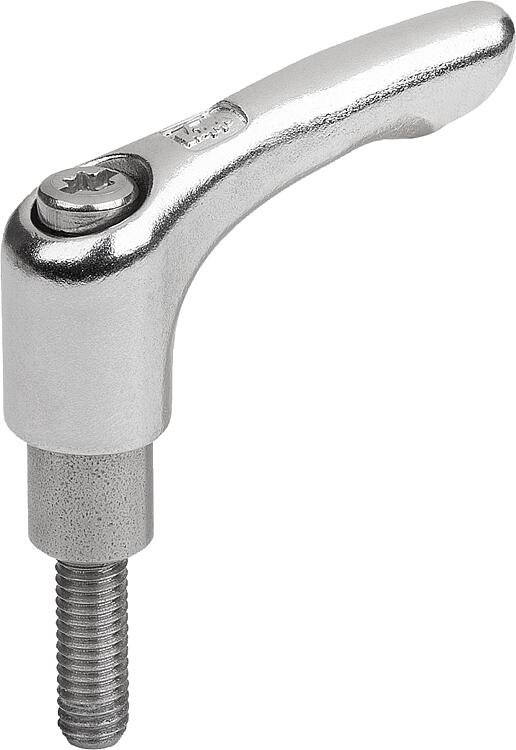

Clamping levers, stainless steel with external thread and long collar, threaded pin stainless steel
Item description/product images

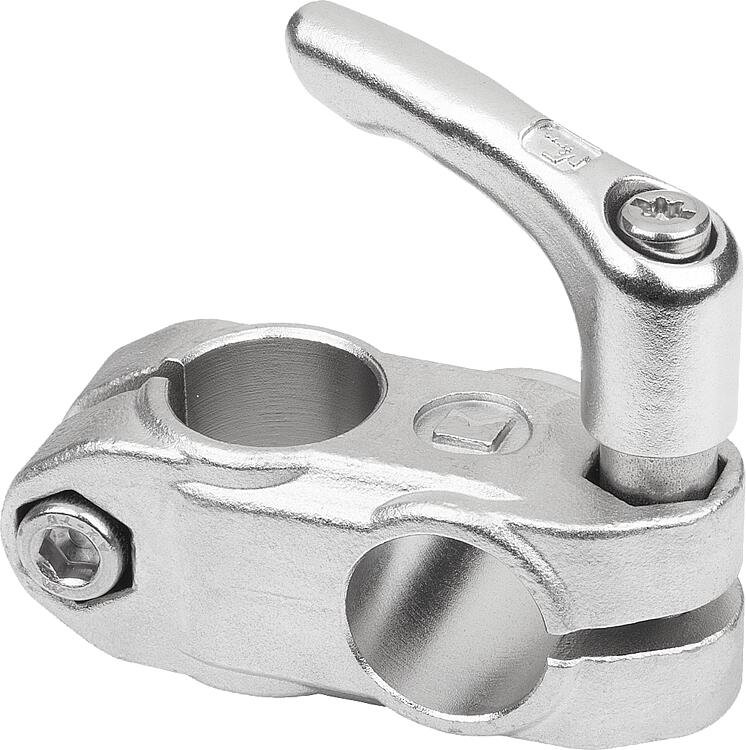

DescriptionProduct description:The clamping lever with extended collar replaces the screw on e.g. tube clamps. This enables tool-free tightening and loosening of the screw connection. The stainless steel clamping lever with its ergonomic handle design has a modern high-quality appearance and provides comfortable haptics.Material:Grip lever investment cast 1.4308. Steel parts stainless steel 1.4305.Version:Handle electropolished. Steel parts bright.Note:A recommendation for the suitable clamping lever is given in the tube clamp dimension tables. Advantages:Tool-free clamping and releasing of tube clampsOn request:Other threads, screw lengths, colours and special versions. Dimension “H1” available in other lengths at extra charge.Accessory:For tube clampsDrawing reference:

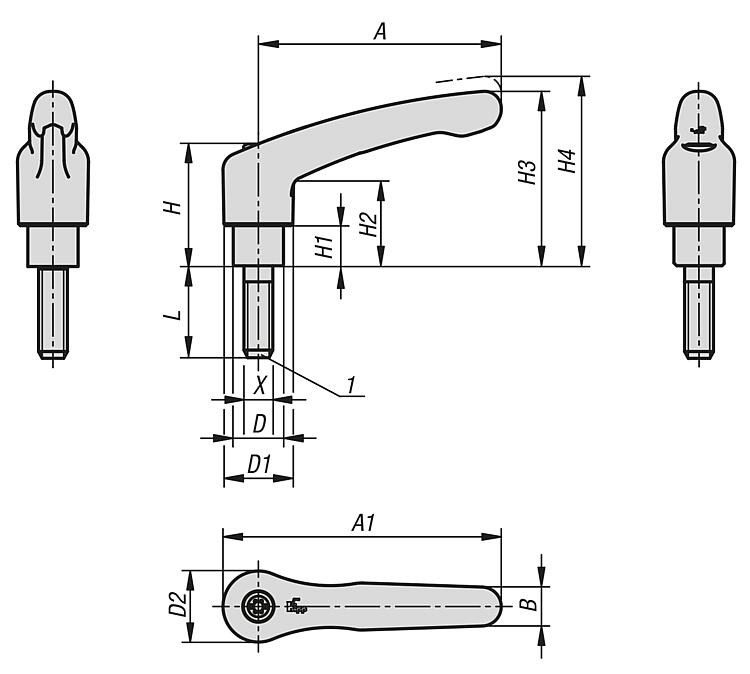

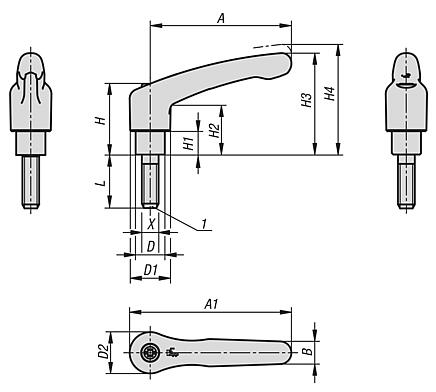

1) DIN EN ISO 4753 flat point
Special features:
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
